Traditional LED cabinets are predominantly made of die-cast aluminum alloy. Although weight control has been considered in engineering, it has rarely been a core variable determining project feasibility. However, as LED screens evolve toward larger scales, more complex forms, and higher-frequency mobile deployments, cabinet weight has shifted from an "optimization item" to a "constraint item." Carbon fiber, which has long served fields with extreme requirements for strength-to-weight ratio, has thus entered the industry's view amid this structural transformation.

What is a carbon fiber LED display?

Simply put, a carbon fiber LED display is a product that applies carbon fiber material to the display unit cabinet structure, significantly reducing product weight while maintaining or even enhancing structural strength.

The LED industry is moving toward lightweight design

The technological evolution of the LED display industry has long revolved around optical performance—smaller pixel pitches, higher refresh rates, and wider color gamuts. However, an issue that cannot be ignored is that as screens get larger, cabinets also become heavier. When screen sizes exceed hundreds of square meters, and when installation scenarios shift from fixed installations to touring stages and suspended ceilings, the physical properties of the cabinet begin to matter as much as display parameters.

Core advantages of carbon fiber LED displays

1. Significant weight reduction

The most prominent advantage of carbon fiber LED displays is their extreme lightness and thinness. The density of carbon fiber is only about 1.7 g/cm³, roughly two-thirds that of aluminum alloy and one-quarter that of steel. LED displays made of carbon fiber can achieve an overall weight reduction of more than 30% compared to traditional aluminum cabinets. This characteristic directly leads to lower transportation and installation costs.

2. High strength and high rigidity

While achieving lightweight properties, carbon fiber also offers extremely high strength, with tensile performance significantly better than that of metal materials of the same weight. Therefore, carbon fiber cabinets exhibit good structural toughness when subjected to external forces such as hoisting, stacking, and impact, and are not prone to deformation or damage.

At the same time, carbon fiber has good corrosion resistance, providing strong resilience against outdoor environmental factors such as acid rain and salt spray, eliminating the need for additional anti-rust treatment like iron cabinets. This gives carbon fiber LED displays a longer service life and higher reliability in harsh environments such as coastal areas and outdoor events.

3. Improved transportation and installation efficiency

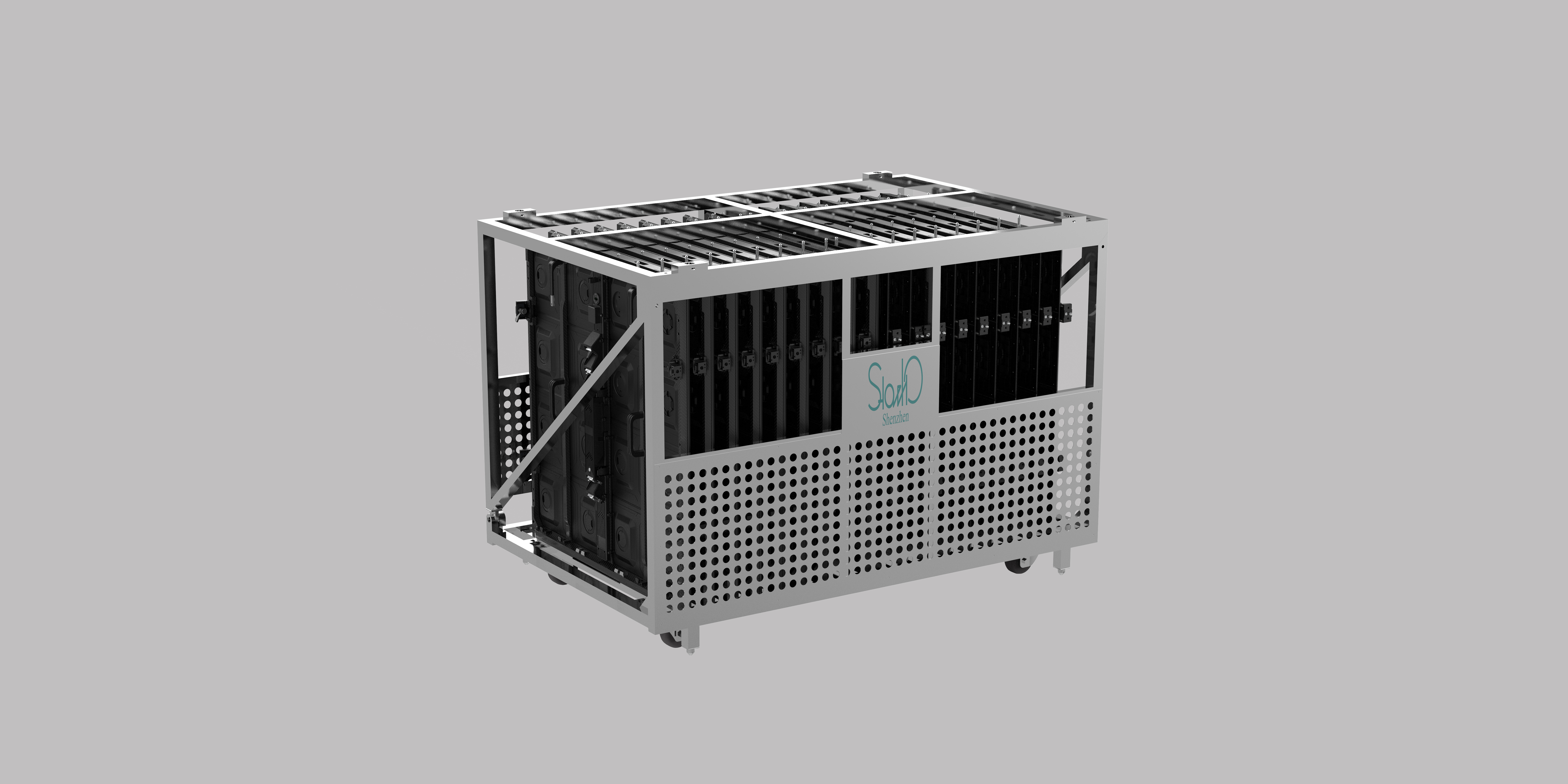

The lightweight design of carbon fiber directly translates into lower shipping costs and greater on-site handling efficiency. This is especially critical for scenarios that require frequent moving, such as touring performances and mobile exhibitions.

In the application of carbon fiber LED displays, Showho has actively deployed its BY Series carbon fiber display products in the rental market.

Showho's flagship BY Series carbon fiber displays offer pixel pitches covering 2.6mm, 2.9mm, 3.9mm, 3.9-7.8mm, and 7.8mm, suitable for indoor and outdoor stage rental and creative display scenarios.

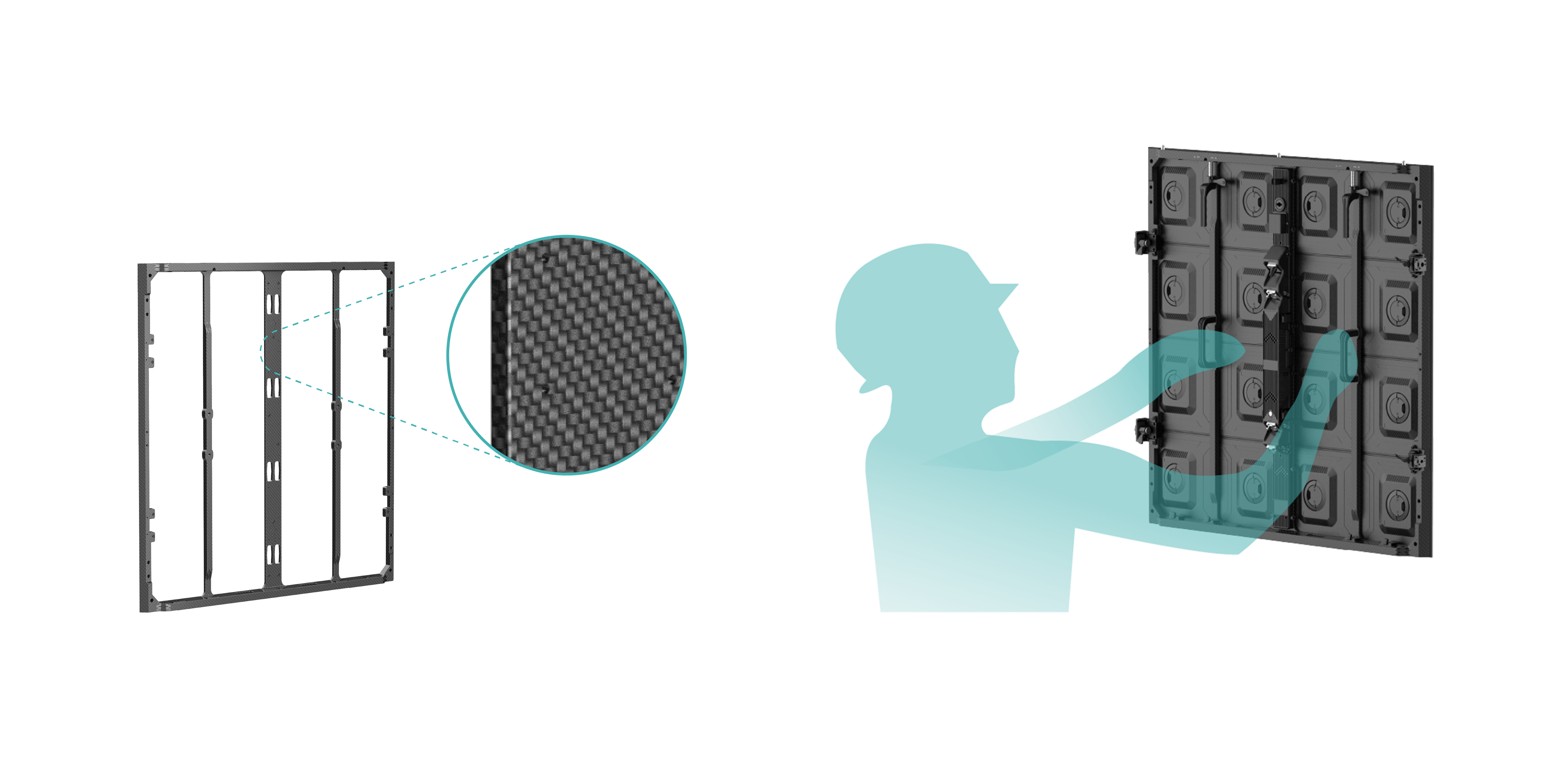

The BY Series uses carbon fiber as the main frame material, featuring a lightweight and thin cabinet design with high structural strength, while meeting the demands of quick on-site assembly and disassembly.

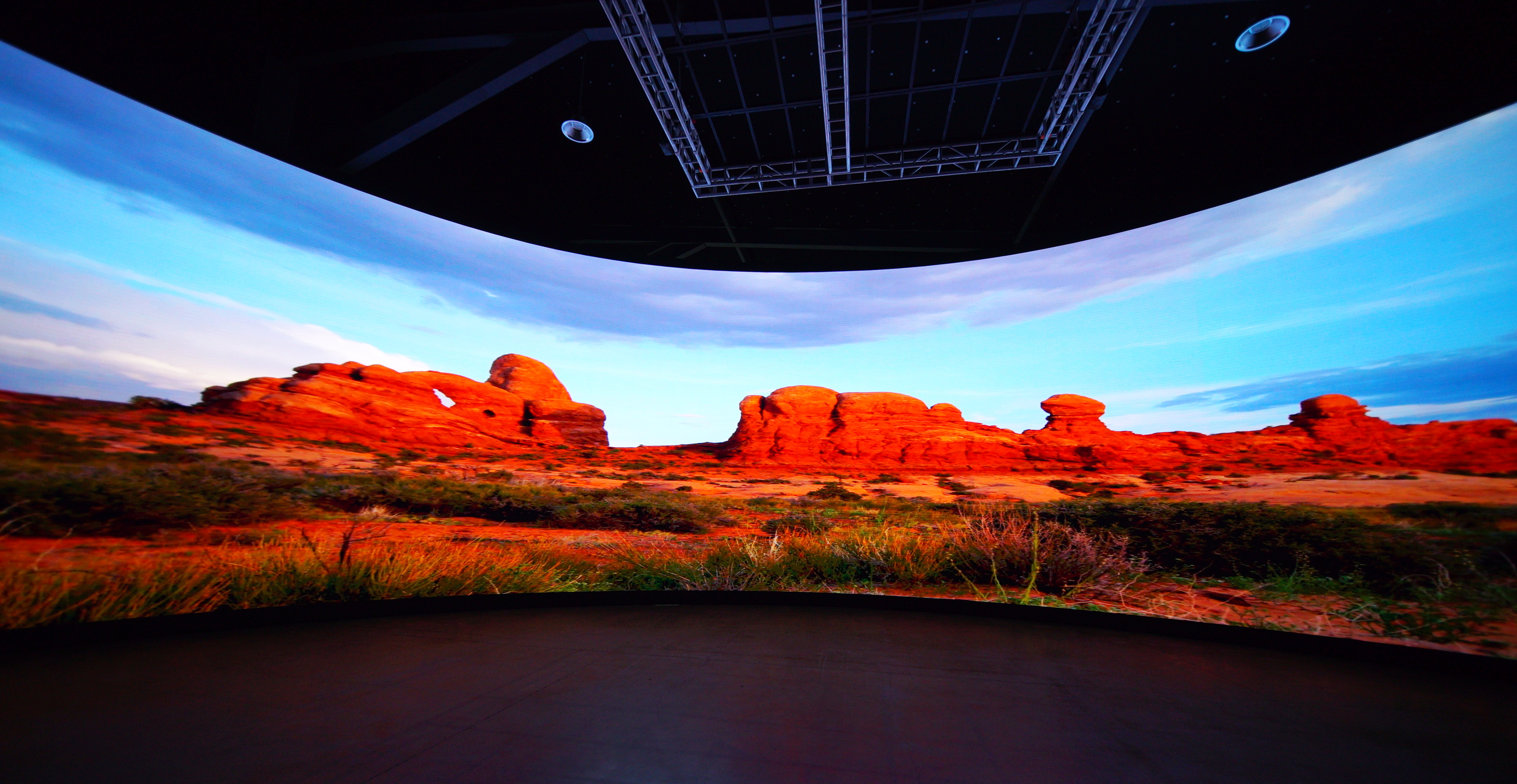

With a modular design, the series supports compatible tiling between different cabinet sizes within the same series, as well as flat, curved, and irregular configurations, providing a structural foundation for creative shapes.

In terms of image quality, the BY Series delivers 16-bit high grayscale, high refresh rates, and wide viewing angles, enabling precise rendering of stage lighting transitions and image details, resulting in vivid and delicate visuals.

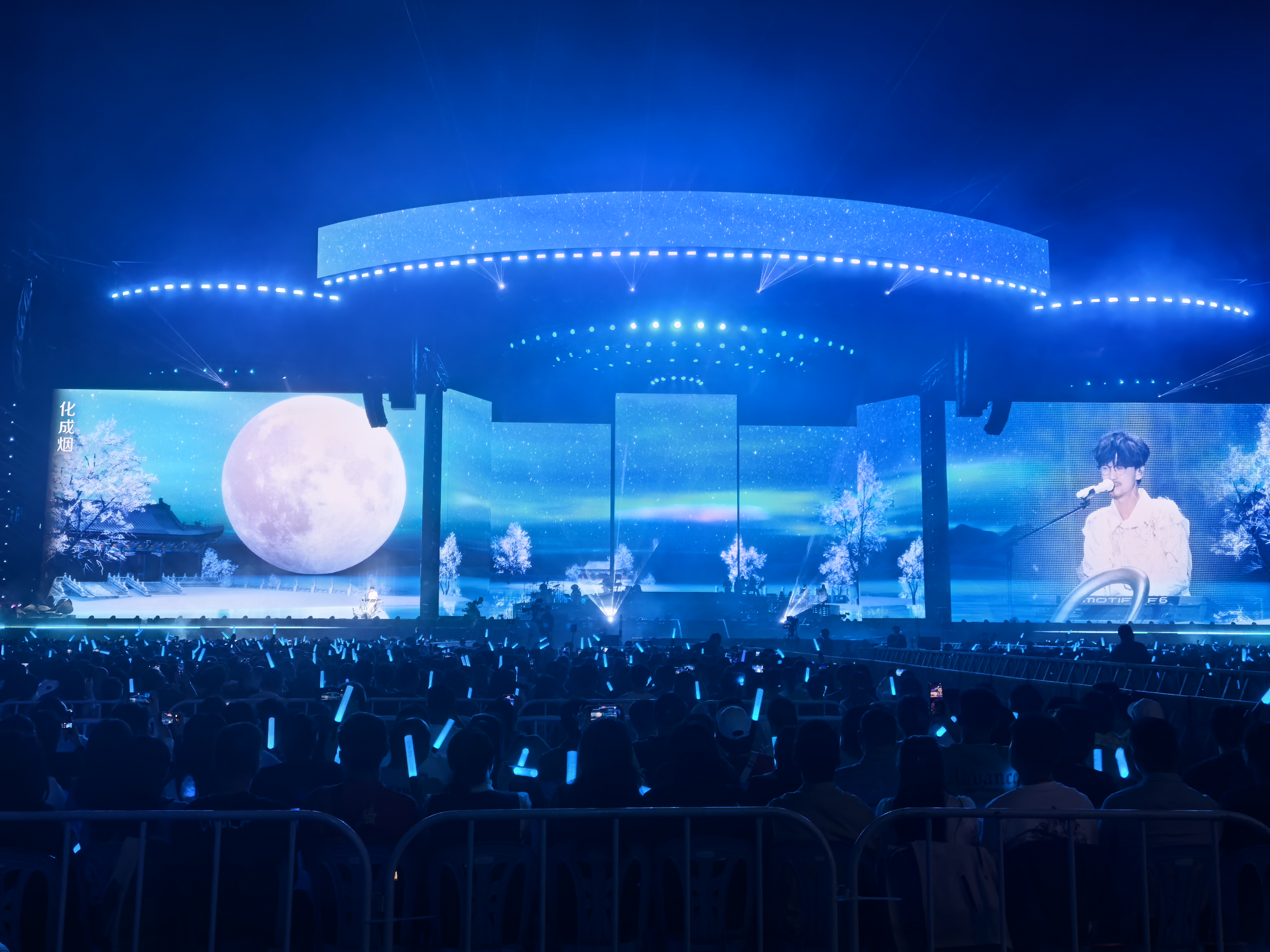

The BY Series is primarily targeted at high-end stage rental and creative display applications. In practice, BY Series carbon fiber displays have been used in numerous large-scale events. Showho's BY Series has helped many clients successfully stage concerts for renowned artists such as Chou Chuan-hsiung, Stefanie Sun, Mayday, and Chen Chusheng, as well as cultural tourism park installations, earning wide recognition from customers.

In summary, carbon fiber LED displays, with their comprehensive advantages in weight reduction, strength, weather resistance, and shape flexibility, are becoming an important development direction for the LED display industry, especially in rental and stage application fields.
